1. Overload protection
2. Short circuit protection
3. Converse discharge protection
4. Reverse polarity connection protection
5. Thunder protection
6. Low voltage protection
7. Overcharge protection
8. Batteries stop and charge voltage HVD sets up
9. Charge and low voltage LCD sets up
10. Display the capability of the battery SOC
11. Loads and comeback setups.
12. Intellectualized temperature compensation
13. Record, calculate and display the charged AH on the LCD screen.
14. CPU control and LCD display

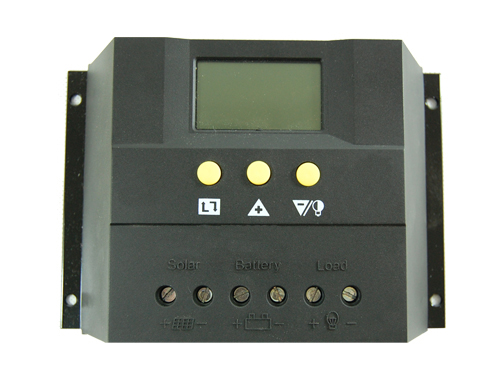

CM50
| Model |
Max Load current |
Rated voltage |
No load loss |
Max wire area |
Ambient temperature |
Weight |
Dimension |
Package |
Carton Gross Weight |
| CM50 |
40A |
12V/24V auto switch |
≤30mA |
16mm² |
-25℃---+55℃ |
590g |
195*99*60(mm) |
560*416*210(mm) |
16KG |
| CM50 |
50A |
12V/24V auto switch |
≤30mA |
20mm² |
-25℃---+55℃ |
590g |
195*99*60(mm) |
560*416*210(mm) |
16KG |
| CM50 |
60A |
12V/24V auto switch |
≤30mA |
20mm² |
-25℃---+55℃ |
590g |
195*99*60(mm) |
560*416*210(mm) |
16KG | |
